When it comes to base stabilization, ground reinforcement, and soil confinement, two major technologies dominate the landscape: Geocells and Geogrids. For B2B buyers — from civil engineers and infrastructure developers to procurement officers working in roadways, mining, oil & gas, or military applications — choosing the right solution is critical to the success and long-term performance of a project.
But how do these two technologies compare in real-world load support applications? More importantly, which one offers better value, efficiency, and performance for your specific needs?
Let’s break down the differences and dive into a performance-focused comparison to help you make a more informed decision.
Geocells are three-dimensional, honeycomb-like structures made from high-density polyethylene (HDPE), designed to constrain and stabilize soil, aggregate, or other infill materials. When expanded and filled, geocells distribute applied loads laterally, reducing vertical pressure and preventing soil movement.
Key characteristics:
3D confinement
Load spreading through cell walls
Suitable for both subgrade improvement and surface reinforcement
Particularly effective in soft soil environments

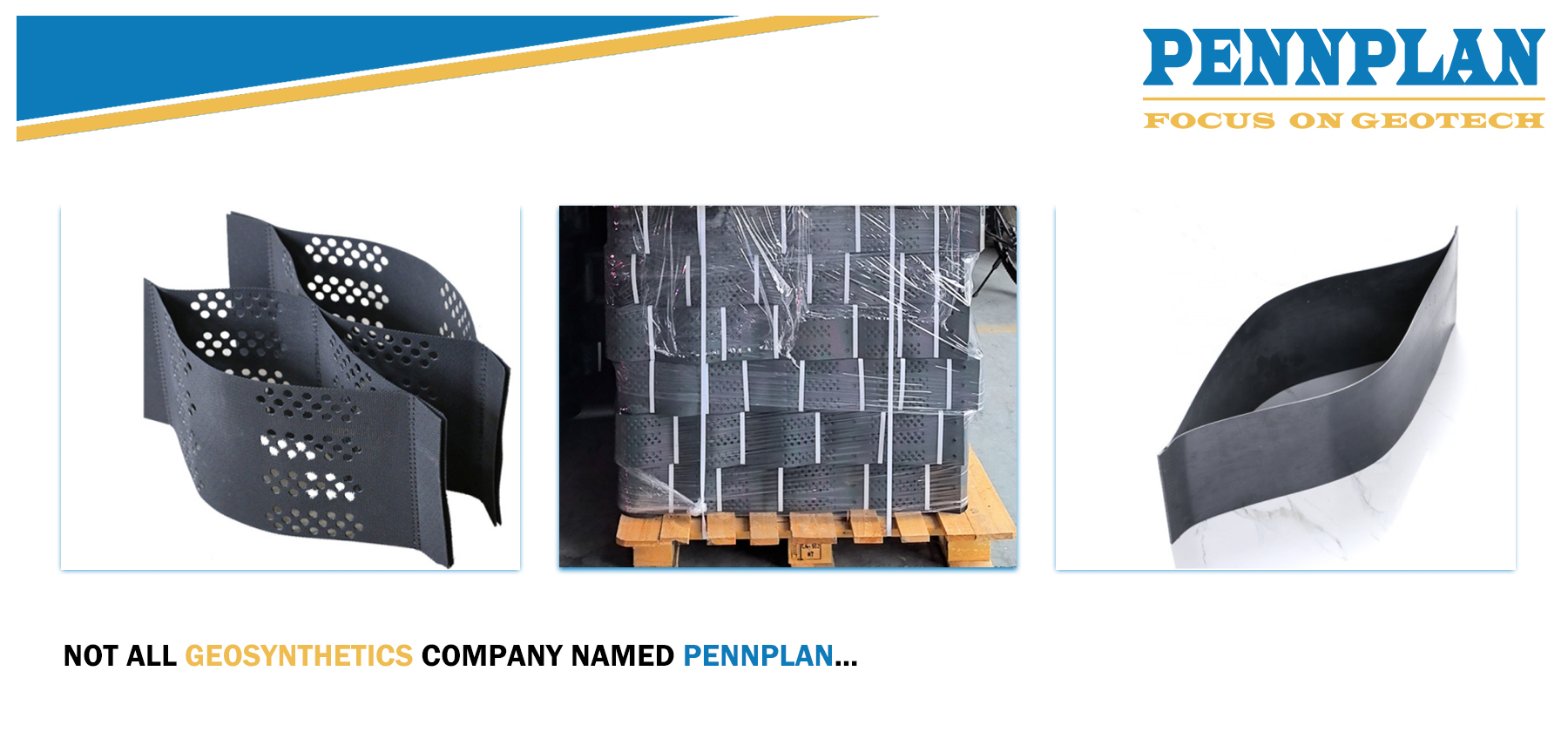

Explore PennPlan’s PennCell Geocell system
Geogrids are two-dimensional, grid-like materials made from polymers such as polypropylene or polyester. They function by reinforcing soils through interlocking with aggregate particles, thus improving tensile strength and load-bearing capacity.
Key characteristics:
2D reinforcement
High tensile strength
Effective under compacted aggregate layers
Widely used in pavement and retaining wall applications
In load support applications, lateral confinement is key. Geocells offer superior confinement due to their 3D structure. Unlike geogrids, which allow lateral displacement of infill under repeated loading, geocells physically contain and limit this movement.
This means:
Higher resistance to rutting
Reduced base thickness requirements
Improved performance over soft and saturated soils
Field studies and industry data show that geocells like PennCell can reduce base thickness by up to 50% while maintaining or improving load-bearing capacity.
Geogrids primarily transfer loads through tensile strength and interlock mechanisms. However, this mechanism is most effective when the soil is compact and dry. In contrast, geocells provide multi-directional load distribution — spreading pressure not just downwards but across the entire geocell mattress.
Result: Better performance under dynamic or cyclic loading, such as traffic or machinery movement.
Geogrids are lightweight and easier to deploy over large areas for general stabilization. However, geocells — especially those like PennCell, which are shipped collapsed and expanded onsite — offer superior customizability, allowing you to adjust cell height, panel dimensions, and infill based on load conditions.
PennCell Geocell offers:
Available cell heights: 75mm, 100mm, 150mm
Easy expansion and connection system
Compatibility with various infill types (sand, aggregate, recycled materials)
Geogrids are generally cheaper on a per-square-meter basis. If your project has low load requirements and is built over competent subgrade, geogrids can be a cost-effective solution.
However, geocells like PennCell often prove more cost-effective over time:
Lower maintenance (due to reduced rutting and erosion)
Longer asset life
Fewer repairs and material replacements
Over a 10-year lifecycle, geocell-reinforced structures can lead to savings of 20–40% compared to traditional geogrid-only solutions, especially in high-impact or soft-soil environments.
More B2B buyers are prioritizing sustainability in their material choices. Both geocells and geogrids are made from durable, inert polymers and can be recycled. However, geocells enable:
Use of recycled fill materials (reducing virgin aggregate demand)
Lower overall material volumes (thanks to reduced base layers)
Decreased carbon emissions in transport and construction
PennCell Geocell systems are engineered for sustainable performance, making them a smart choice for eco-conscious projects.
Geocells outperform geogrids in a variety of high-load or variable-soil conditions, including:
Access roads in remote oil & gas sites
Military vehicle paths and helipads
Slope stabilization and erosion control
Construction platforms over soft subgrades
Railway ballast reinforcement
A recent deployment of PennCell Geocell on a mining haul road in Canada demonstrated a 47% reduction in base course thickness, with no measurable rutting after 12 months of heavy vehicle traffic. Compared to geogrid-based designs, the geocell-reinforced solution:
Reduced material cost
Improved compaction results
Lowered construction time
| Feature | Geocell (PennCell) | Geogrid |
|---|---|---|
| Load Distribution | Excellent | Moderate |
| Lateral Confinement | Superior | Limited |
| Performance in Soft Soils | High | Moderate |
| Upfront Cost | Higher | Lower |
| Long-term Value | High | Medium |
| Sustainability | High | Moderate |
At PennPlan, we specialize in ground stabilization and geosynthetic engineering. Our PennCell Geocell systems are backed by engineering expertise, fast delivery, and project-specific technical support.
Customized solutions
In-stock availability
Proven performance in global applications
Professional consultation & CAD support
Ready to reinforce your next project?
Talk to a technical-sales expert today !
